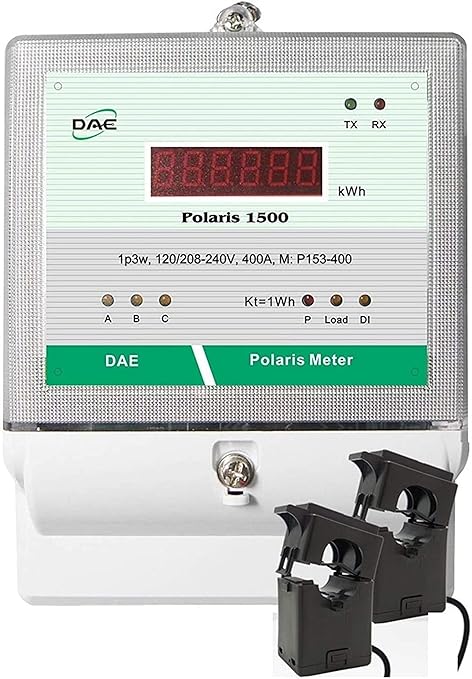

About This

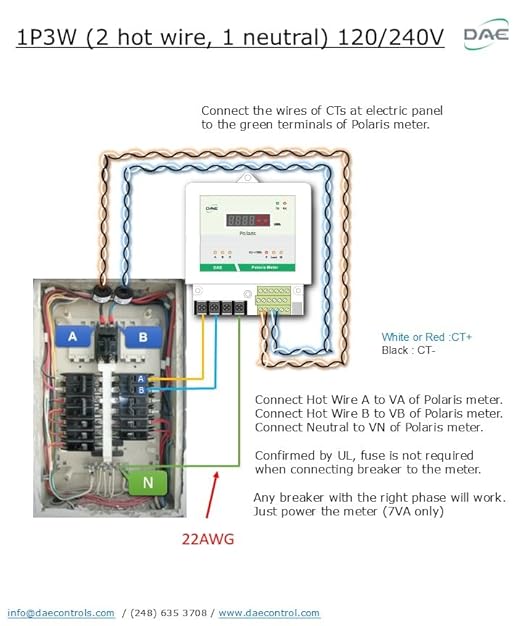

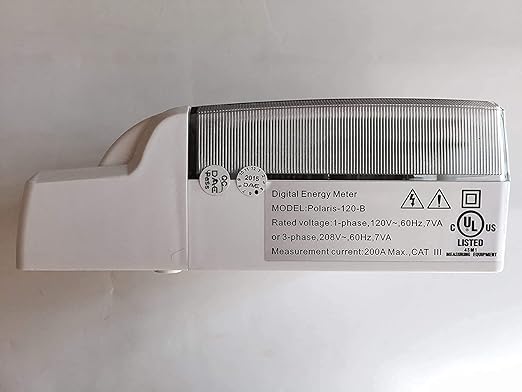

UL/cUL Listed, Conform to ANSI C12.1 national accuracy standards. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. One in-inline fuse with holder is attached for you to connect hot wire A to VA of the meter. The meter is powered by VA and VN. VB and VC just take the reference of voltage from hot wire B, C. They do not need in-inline fuse.

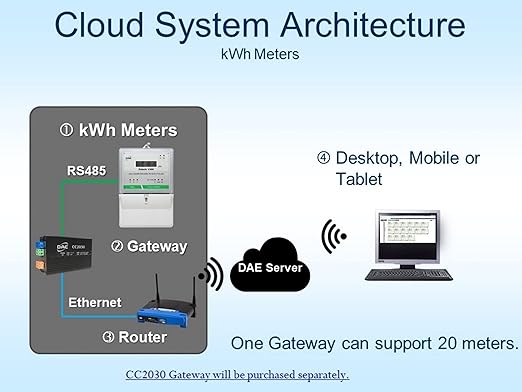

DAE Cloud Metering (2nd picture) available with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

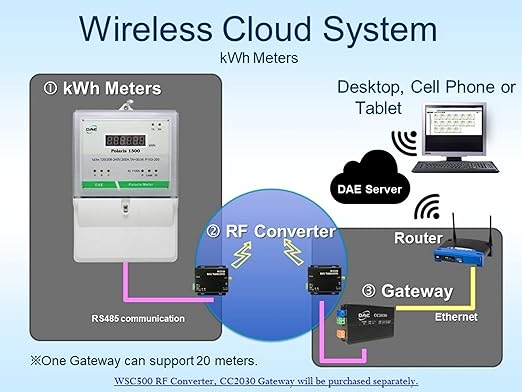

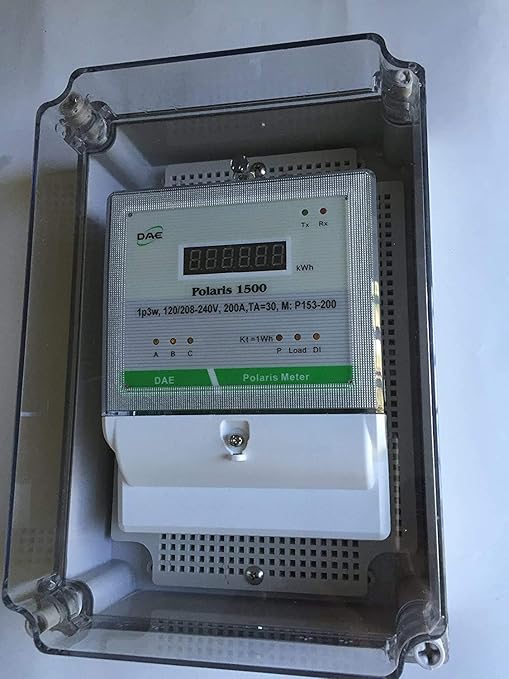

For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Indoor use only, DAE B1725 watertight enclosure is available for outdoor use (4th picture).

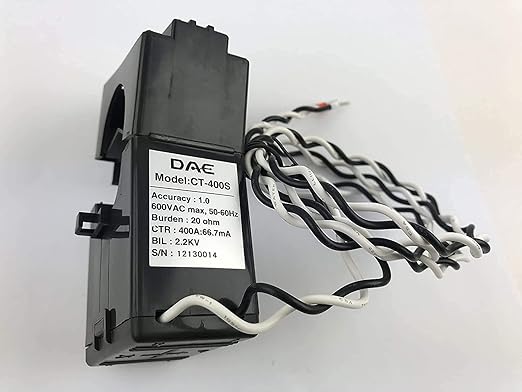

Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.

Overview

Brand : DAE
Power Source : Corded Electric
Style : W/ RS485, Split CTs
Item dimensions L x W x H : 7.42 x 5 x 2.24 inches
Min. Operating Voltage : 120 Volts (AC)
