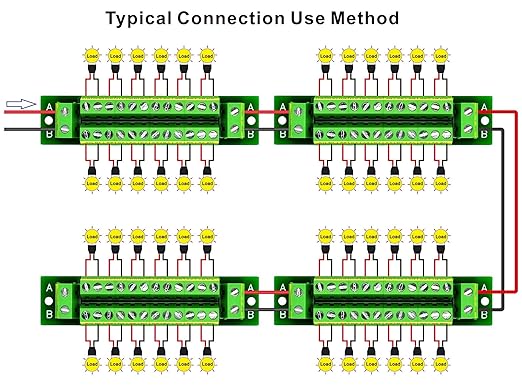

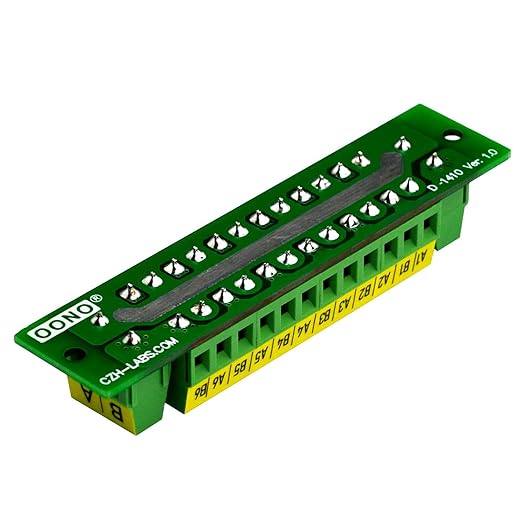

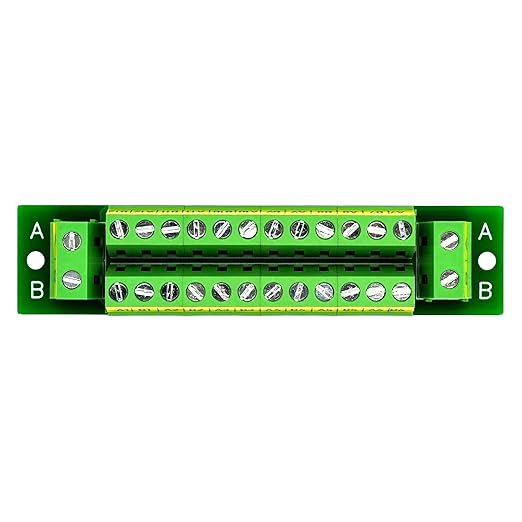

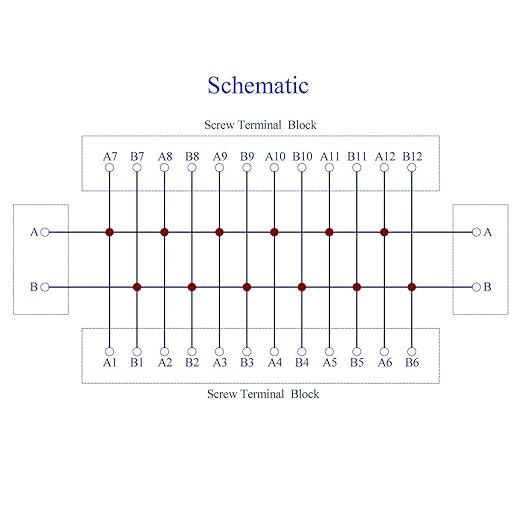

16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
Rated current 16 Amp(total input or output), Maximum voltage 48V

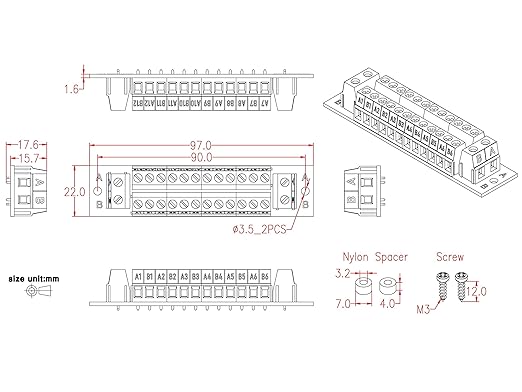

A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

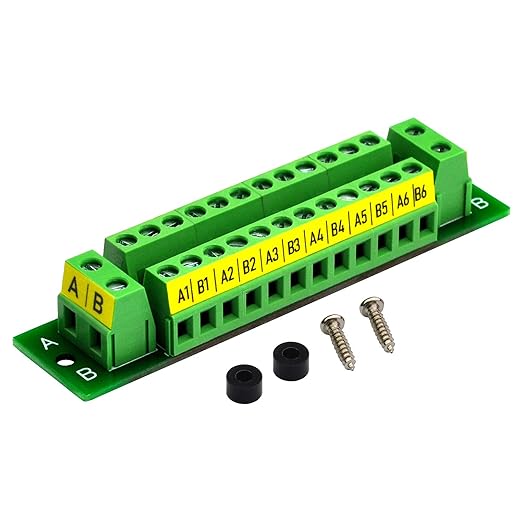

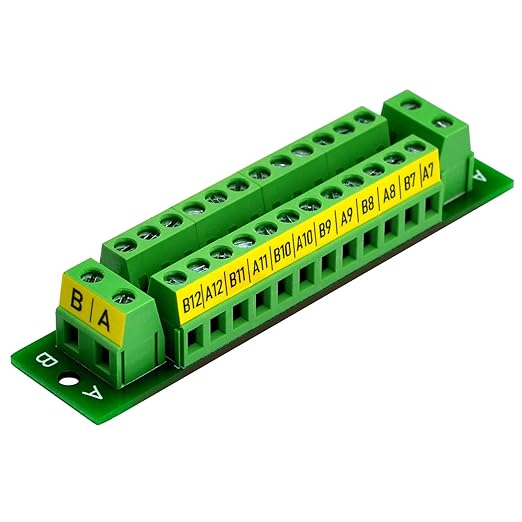

A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.

Overview

Current Rating : 16 Amps
Gauge : 0.01
Connector Type : Screw
Number Of Contacts : 24
Mounting Type : PCB Mount
Material : Brass, Glass
Brand : OONO
Voltage : 48 Volts
Number Of Poles : 12
Product Dimensions : 4.72"W x 0.97"H
