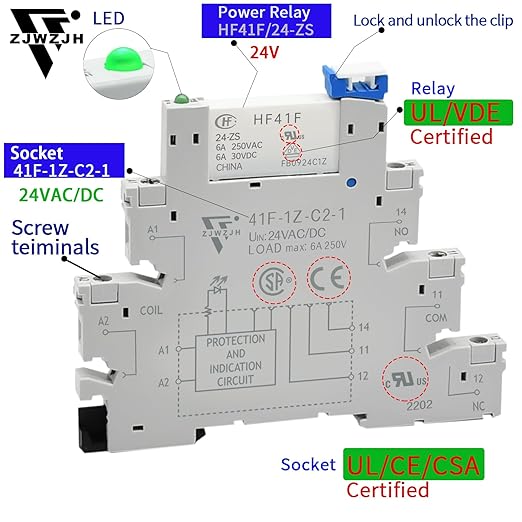

【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
【Electromechanical Relays】Relay Coil Voltage: 24V AC/DC , Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin. Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.
【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Apply to relay the rated voltage: (12~24)V DC; Input voltage polarity: NO.

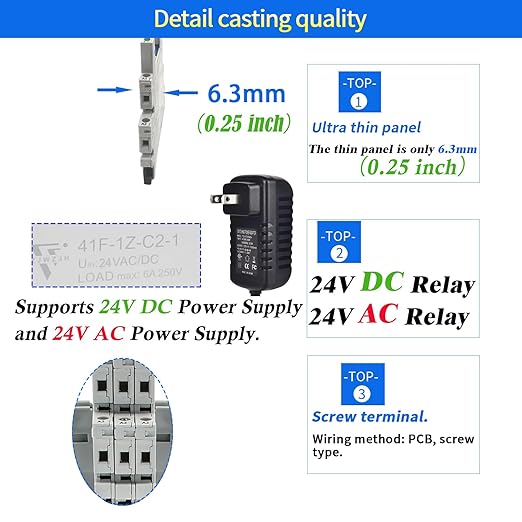

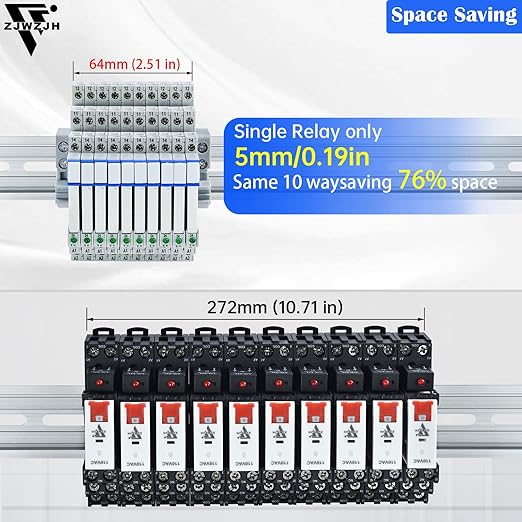

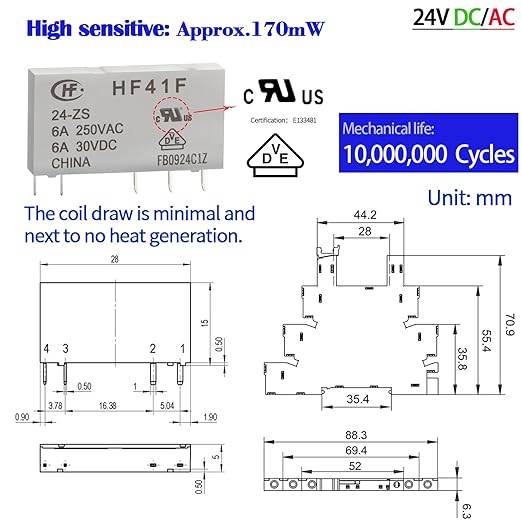

【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

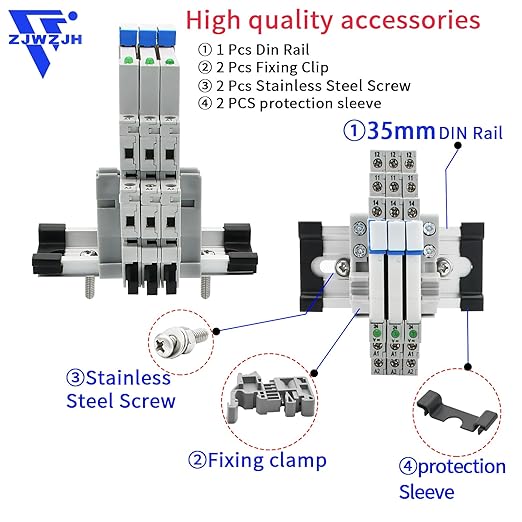

【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.

Overview

Connector Type : Screw
Contact Material : Silver Tin Oxide
Contact Type : Normally Open
Current Rating : 6 Amps
Mounting Type : DIN Rail Mount
