About This

• ①This wifi switch can be used with Alexa / Google Assiatant, you can use voice control to turn on/off home appliances. You can use EWelink APP on Android and iOS to remotely control the on/off of electronic devices from anywhere. You can also use the 433 MHz radio frequency remote control to open/close garage doors, lights or other electrical equipment.
• ②DIY your smart home, smart lighting, fan, garage door, humidifier, thermostat, etc. EWelink APP also provides other functions, such as schedule, device sharing, group management. You can also set up routines in the Alexa or Google homepage to make the operation more convenient.

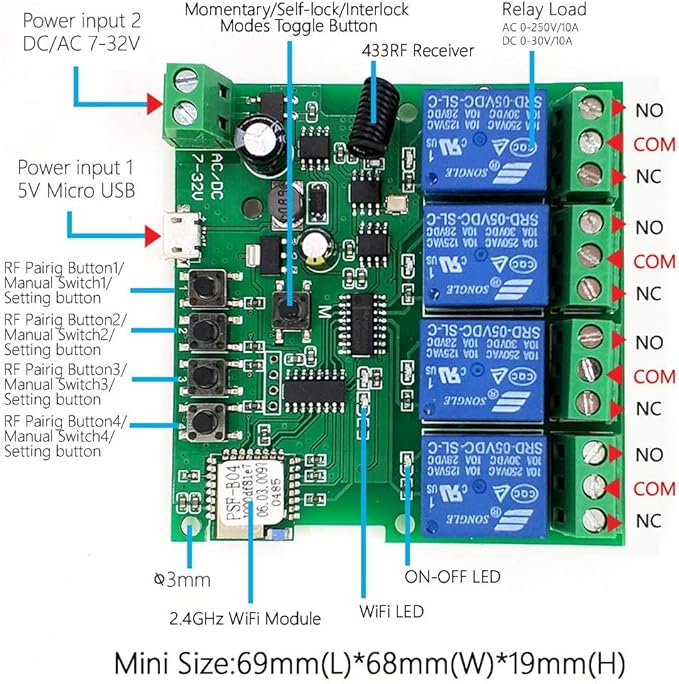

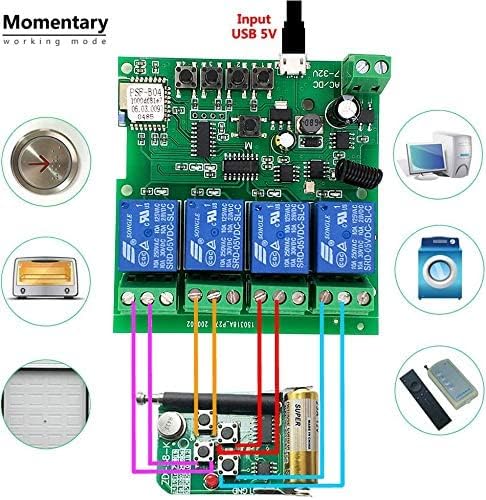

• ③4 relay channels and 3 operation mode switching: 4 relays correspondingly control electrical equipment. There are 3 modes to choose from: instantaneous, self-locking and interlocking. All 4 channels work in the same mode; no specific mode can be set for each channel.

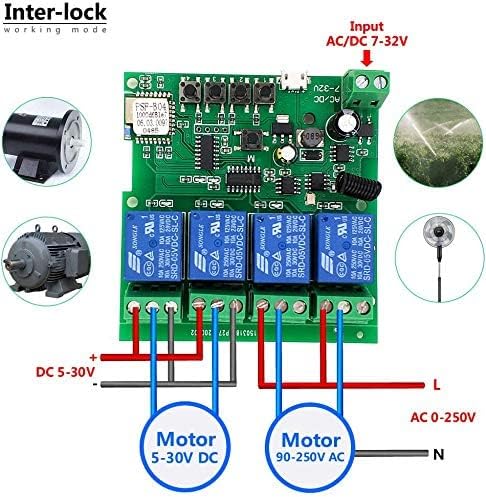

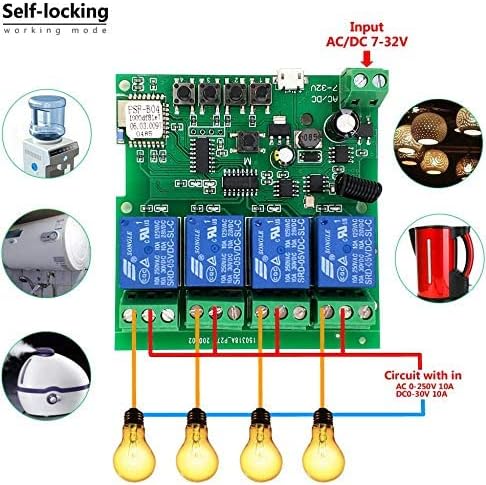

• ④Self-locking mode and locking mode: In self-locking mode, if you press the button on the APP (or the manual button on the board), the relay will open. Only when the button is pressed again, the relay will close. If you open a relay in interlock mode, the other relays will remain "OFF".
• ⑤Easy setting via USB 5V or AC/DC 7-32V. Convert the relay module into an integrated smart device through the existing 2.4G Wi-Fi network to add smart WiFi control to your home. WIFI relay only supports 2.4G WIFI, and does not support Mesh WiFi system and 5G WiFi network. When pairing, make sure it is close to the router.

Overview

• Connector Type : Usb, Barrel Jack
• Contact Type : Normally Open
• Brand : Newgoal
• Operation Mode : Automatic
• Coil Voltage : 32 Volts
