About This

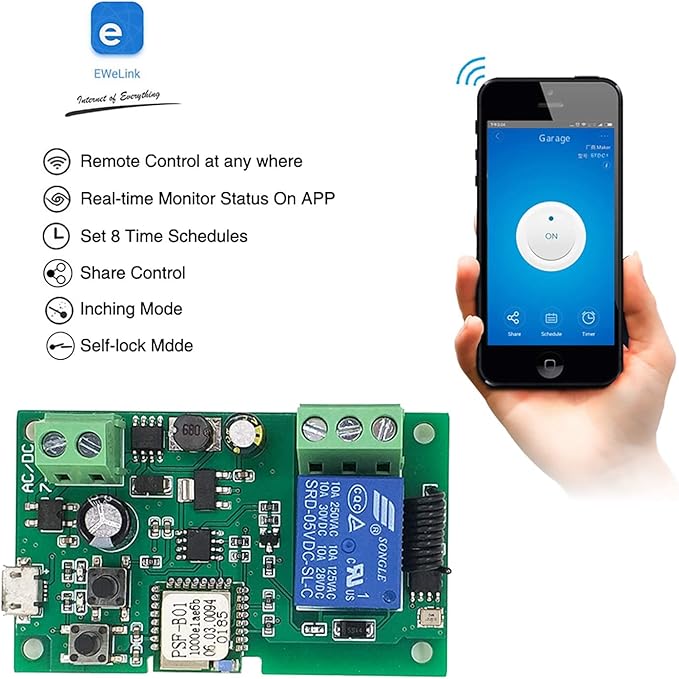

• ①This wifi switch can be used with Alexa / Google Assiatant, you can use voice control to turn on/off home appliances. You can use EWelink APP on Android and iOS to remotely control the on/off of electronic devices from anywhere. You can also use the 433 MHz radio frequency remote control to open/close garage doors, lights or other electrical equipment.

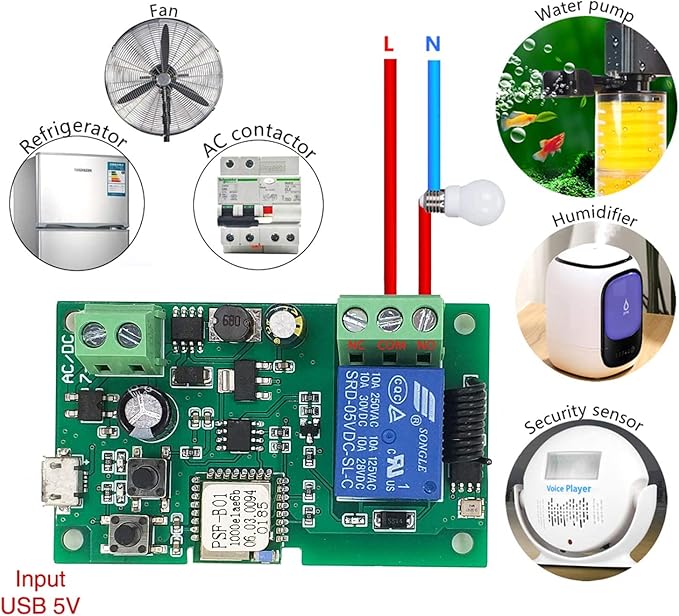

• ②DIY your smart home, smart lighting, fan, garage door, humidifier, thermostat, etc. EWelink APP also provides other functions, such as schedule, device sharing, group management. You can also set up routines in the Alexa or Google homepage to make the operation more convenient.
• ③This wireless switch module can be used in conjunction with Alexa / Google Assistant / IFTTT, and household appliances can be turned on/off by voice control. Note: To support IFTTT, you need to open an Ewelink premium membership.

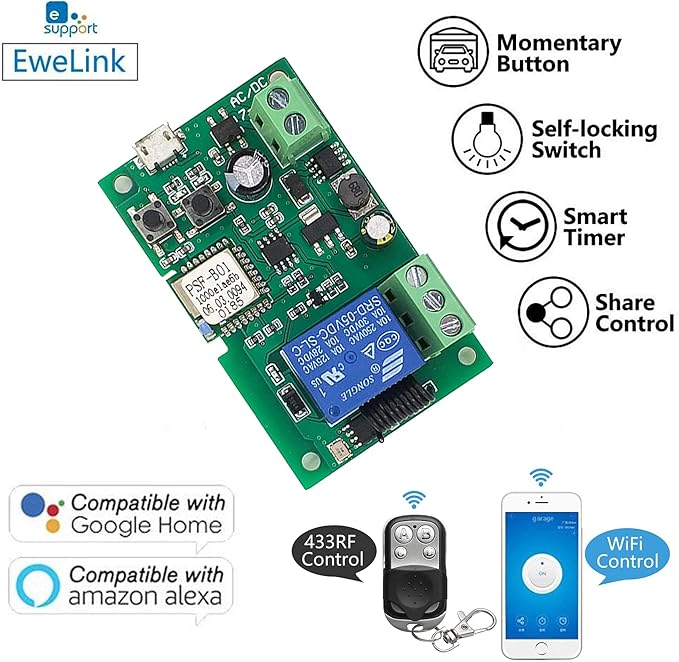

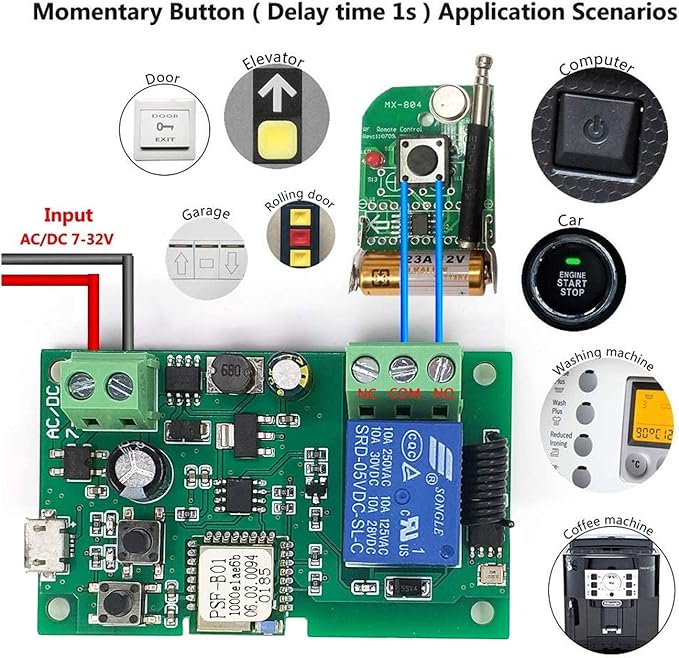

• ④In the jog mode (instantaneous mode), if you press the button on the application (or the manual button on the development board), the switch will turn on, and then automatically turn off after 1 second. In the self-locking mode, when you press the button on the APP (or the manual button on the panel) once, the relay will open. When the button is pressed again, the relay will turn off.

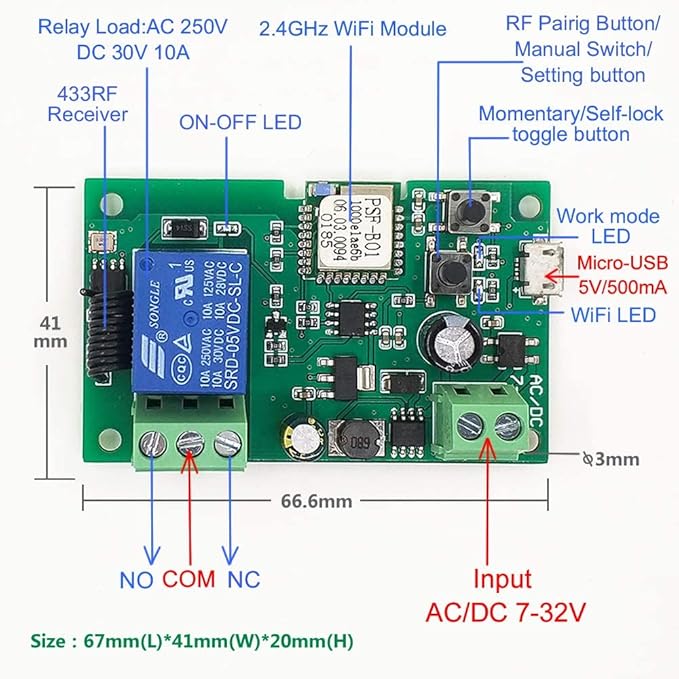

• ⑤Easy setting via USB 5V or AC/DC 7-32V. Convert the relay module into an integrated smart device through the existing 2.4G Wi-Fi network to add smart WiFi control to your home. WIFI relay only supports 2.4G WIFI, and does not support Mesh WiFi system and 5G WiFi network. When pairing, make sure it is close to the router.

Overview

• Connector Type : Usb, Ac/Dc
• Contact Material : Silver
• Contact Type : Smart Speaker
• Mounting Type : Wall Mount
• Brand : Newgoal
