About This

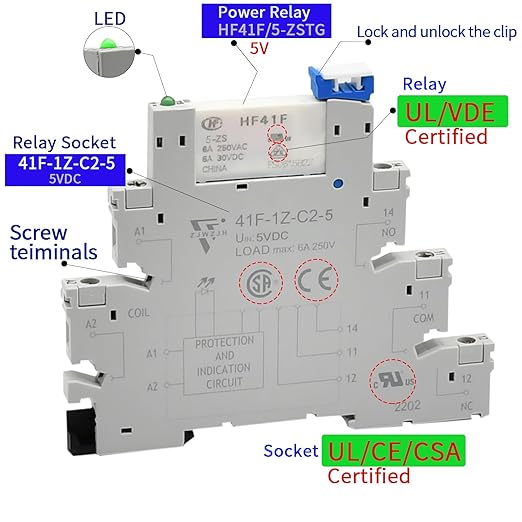

【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

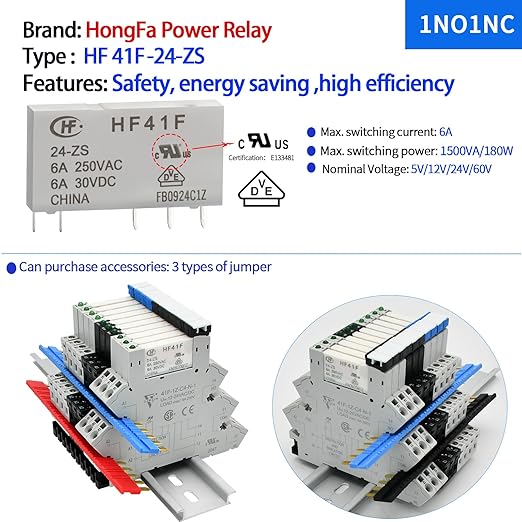

【Electromechanical Relays】Relay Coil Voltage: 5V DC, Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

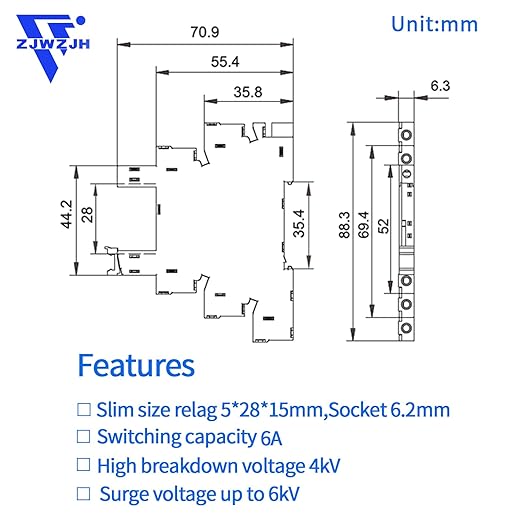

Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

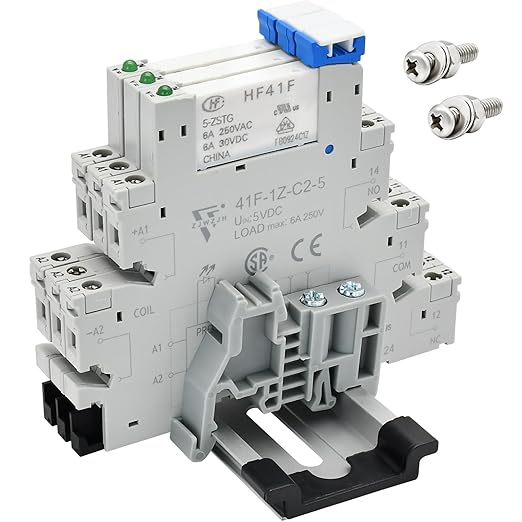

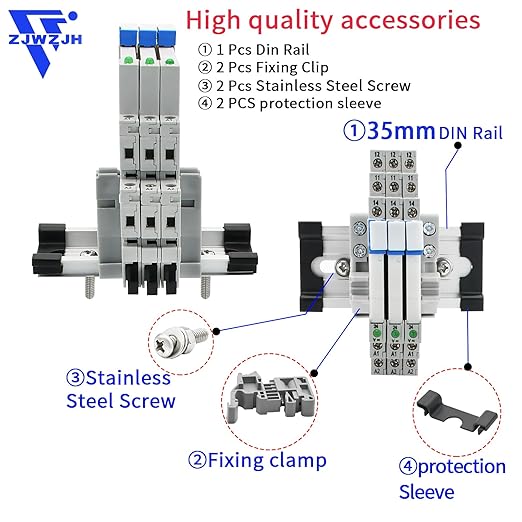

【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.

Overview

Connector Type : Screw
Contact Material : Silver Tin Oxide
Contact Type : Spdt
Current Rating : 6 Amps
Mounting Type : DIN Rail Mount
