【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

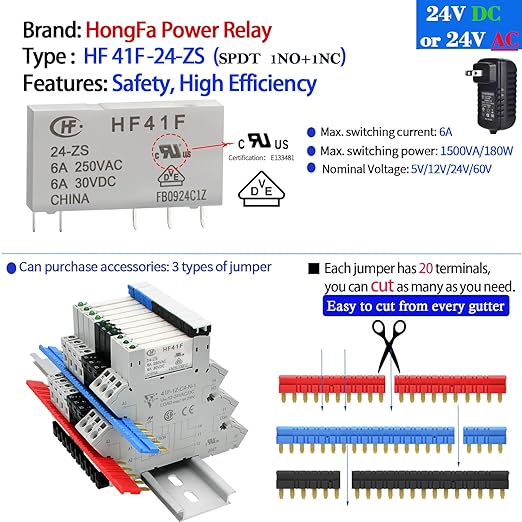

【Electromechanical Relays】Relay Coil Voltage: 24V DC and 24V AC , Contact:SPDT, 1NO 1NC; Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

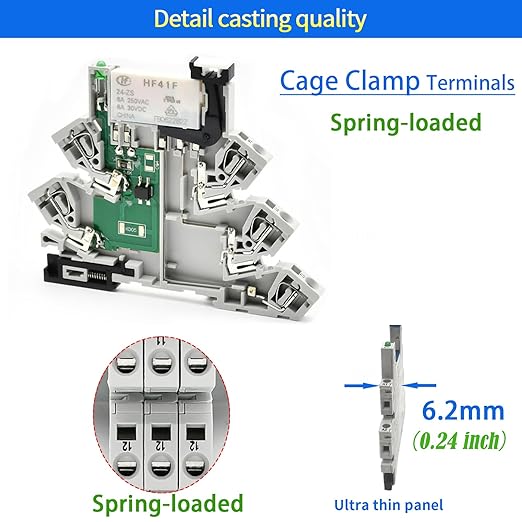

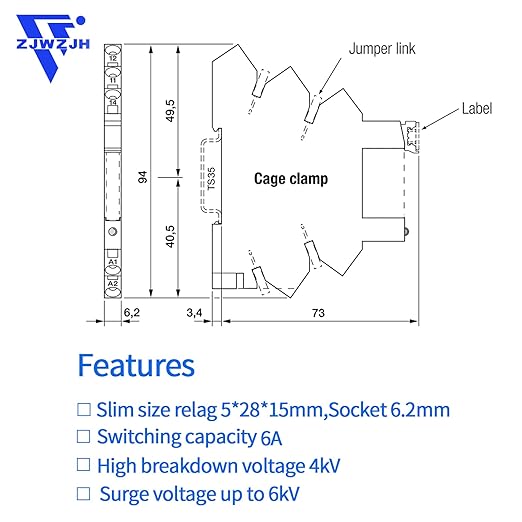

【Easy to install】Insert a small blade or a straight screwdriver into the small square hole, and then directly insert the wire into the circular hole.★★ No need to twist screws,★★ easy and convenient. Size: 70.9 x 88.3 x 6.3mm / 2.8"x3.5"x 0.25" (H*L*W).

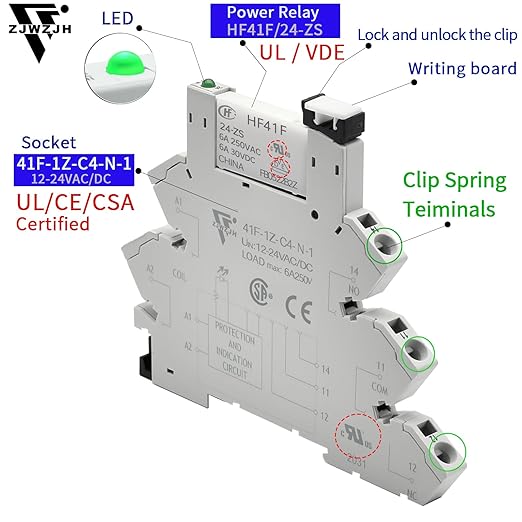

【Socket】Socket: Spring -Loaded Cage Clamp Terminals, DIN rail mounting, with finger protection device.Relay Input voltage: 24V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

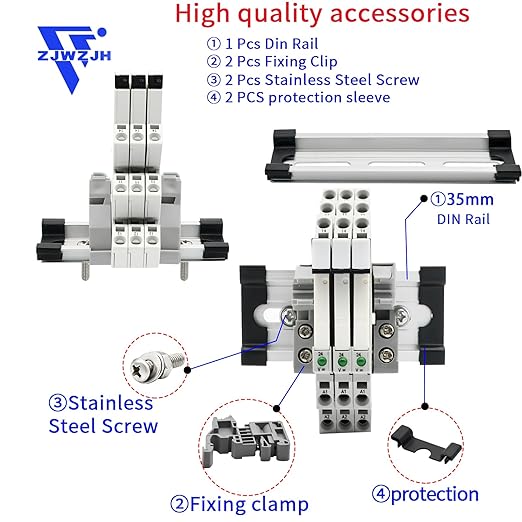

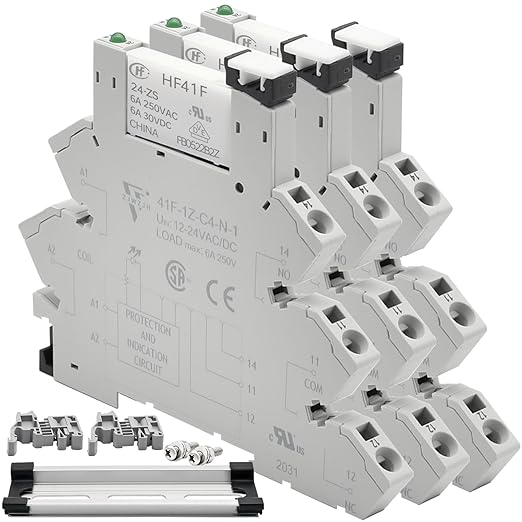

【Package】Package Content : 3× Relay; 3× Socket Base; 1x DIN Rail; 2× Fixing Clip; 2× Screw. Ambient temperature: -40℃ ~ 70℃.

Overview

Connector Type : Spring Terminals
Contact Material : Silver Tin Oxide
Contact Type : Normally Open
Current Rating : 6 Amps
Mounting Type : DIN Rail Mount
