DIYmalls 2.4" inch TFT LCD Display Module ILI - 9341 Resistive Touchscreen 5V/3.3V 8-bit Parallel Interface w/SD Card Slot for Arduino Mega-2560
$19.77
Skip to product information
DIYmalls 2.4" inch TFT LCD Display Module ILI - 9341 Resistive Touchscreen 5V/3.3V 8-bit Parallel Interface w/SD Card Slot for Arduino Mega-2560
$19.77
Shipping calculated at checkout.
About This
- This 2.4 inch tft lcd shield is resistive touch, not capacitive touch.

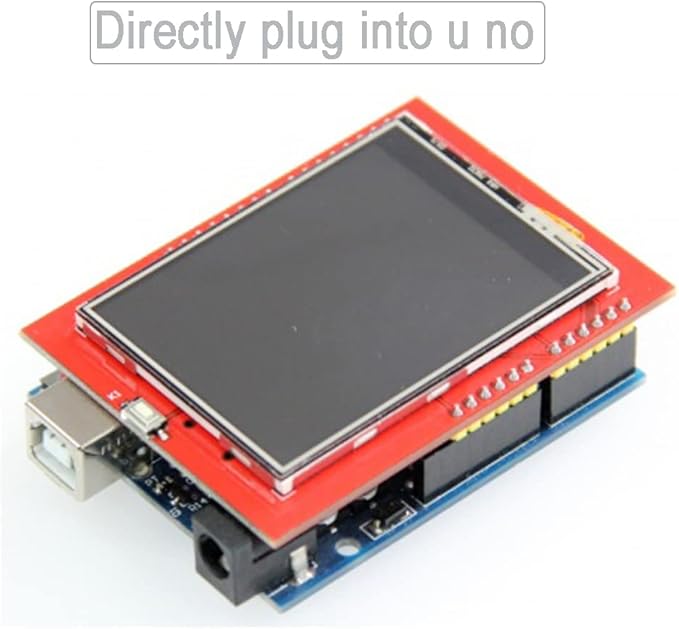

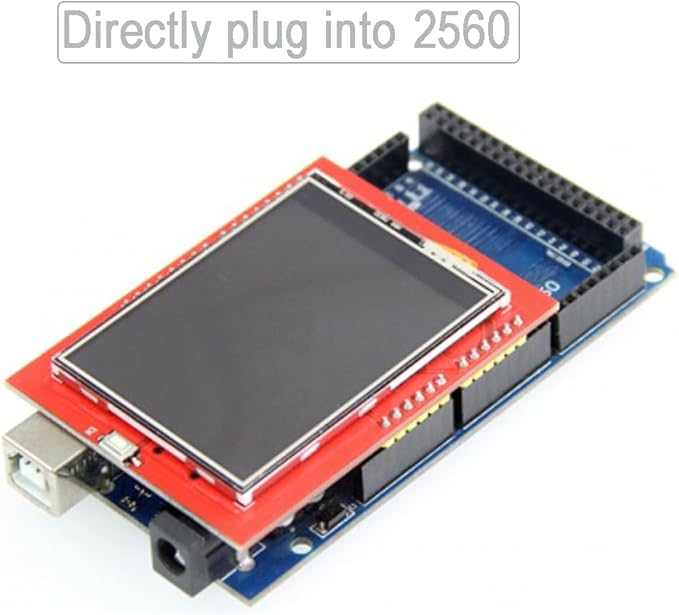

- The 2.4 inch display can be directly plug into u no and 2560.

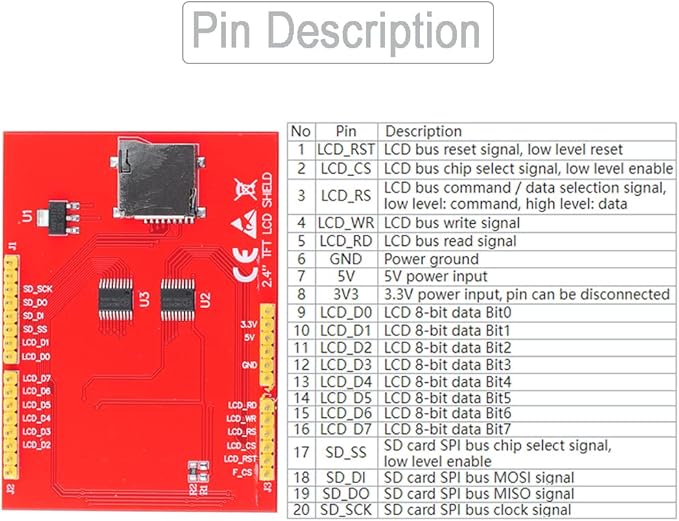

- Wiring with STC12 board: 5V-5V, 3V3-3V3, GND-GND, LCD_D0-P20, LCD_D1-P21, LCD_D2-P22, LCD_D3-P23, LCD_D4-P24, LCD_D5-P25, LCD_D6-P26, LCD_D7-P27, LCD_RST-P33, LCD_CS-P13, LCD_RS-P12, LCD_WR-P11, LCD_RD-P10, no need to connect SD_SS, SD_DI, SD_DO, SD_SCK.

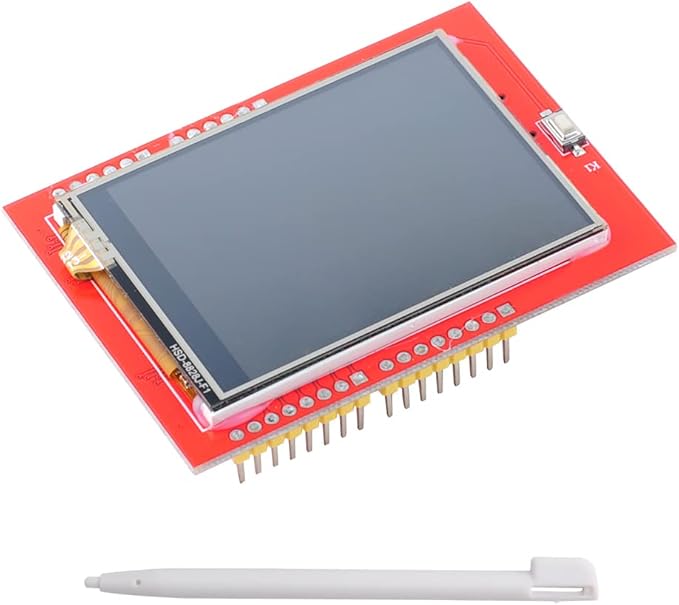

- You will receive 1pcs 2.4 inch tft lcd display with touch pen, other accessories excluded.
- You can find more lcd display via "Visit the DIYmalls Store"
Overview
- Brand : DIYmalls
- Connectivity Technology : Parallel Interface, SD Card
- Included Components : 1pcs 2.4 inch touchscreen
- Operating System : Linux
- CPU Manufacturer : Atmel
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
Shop The Full Collection
