About This

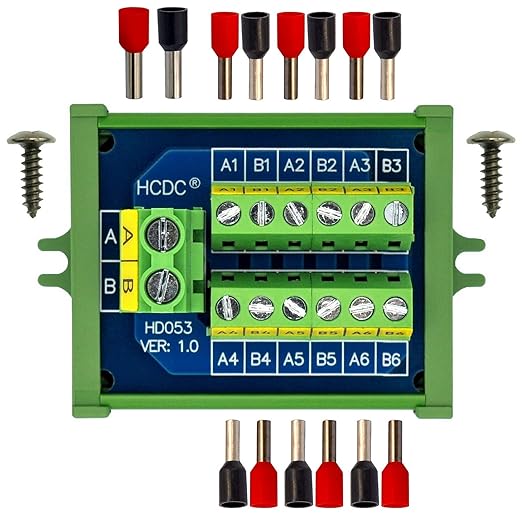

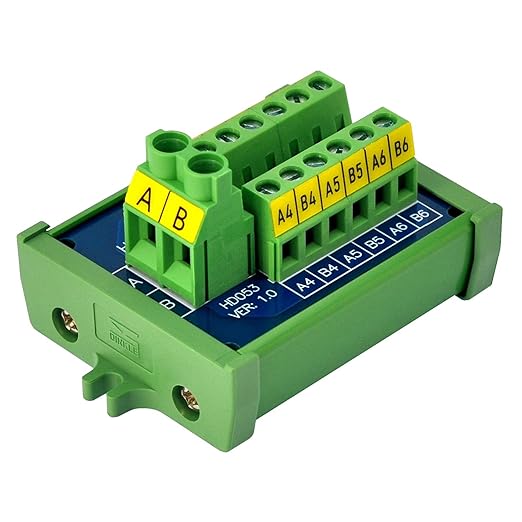

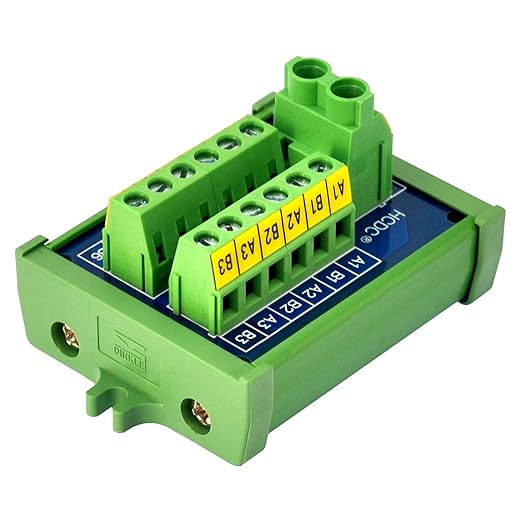

Screw mount 30Amp 48V 2x6 position screw terminal block distribution module.
Rated current: 30 Amp(total input or output). Maximum voltage: 48V.
A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality fireproof nylon material mount carrier(UL CE certified, not China low quality carrier). UL CE CQC certified terminal blocks. UL CE certified FR-4 glass fiber PCB.

Overview

Current Rating : 30 Amps
Item Pitch : 7.62 Millimeters
Gauge : 1
Connector Type : Screw
Number Of Contacts : 6
Mounting Type : screw mount
Material : Nylon
Brand : HCDC
Voltage : 48 Volts
Number Of Poles : 6
