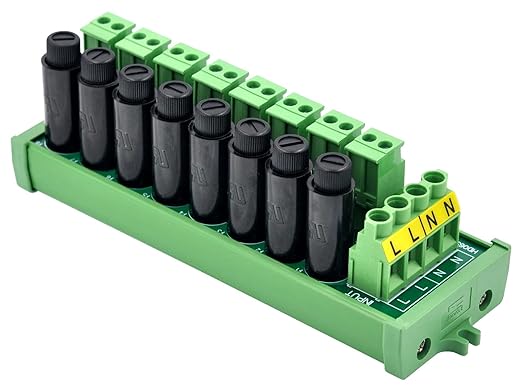

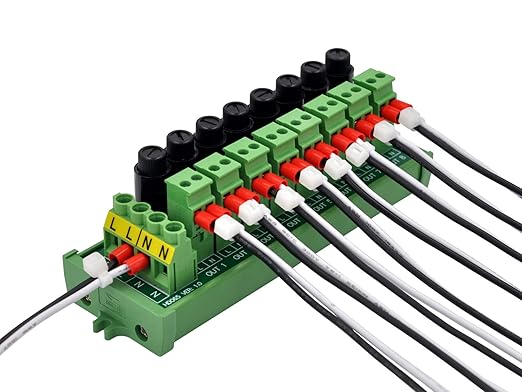

Operating voltage AC 24 to 250V. Maximum total input / output current 15 Amp.

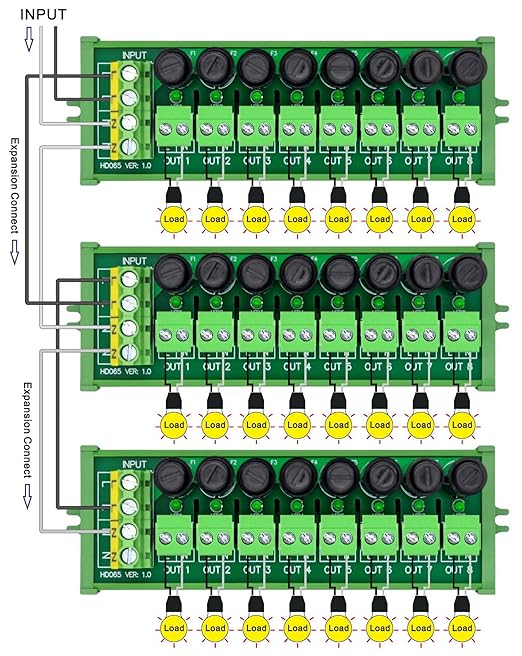

Input: Maximum current 15 Amp for per position. Double positions L and N polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.
Output: 10 position pluggable side wiring terminal blocks. Maximum current 4 Amp for per position (factory pre-installed is slow blow 4Amp 5x20mm glass tube fuses). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

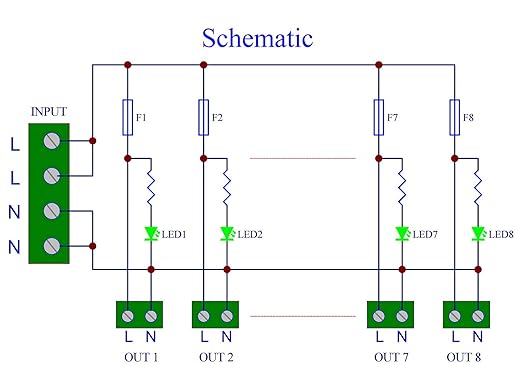

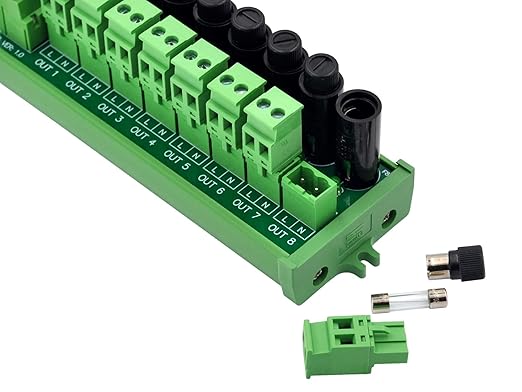

Fuse holder support 5x20mm tube fuse, the fuse can be replaced very easily. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

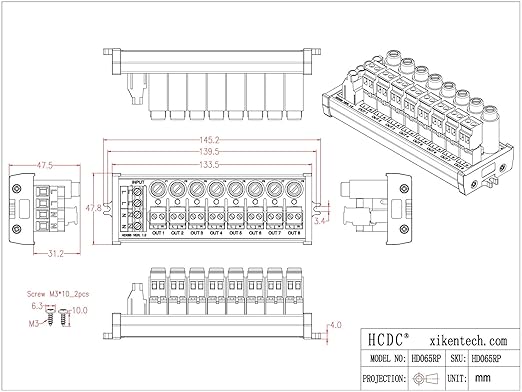

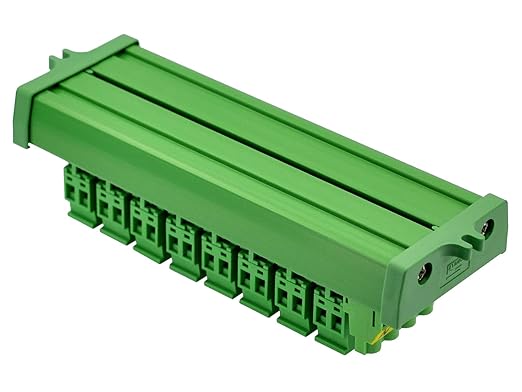

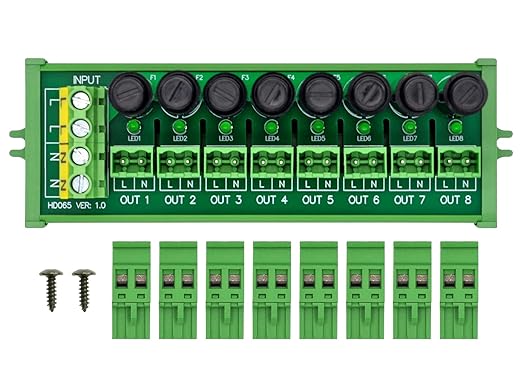

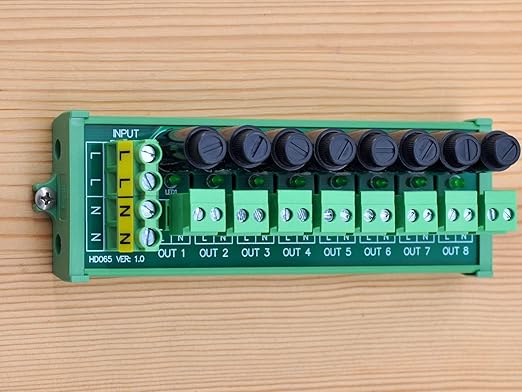

High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified screw mount carrier.

Overview

Current Rating : 15 Amps
Item Pitch : 7.62 Millimeters
Gauge : 10.0
Connector Type : Screw
Number Of Contacts : 8
Mounting Type : PCB Mount
Material : Nylon
Brand : HCDC
Voltage : 250 Volts
Number Of Poles : 10
