About This

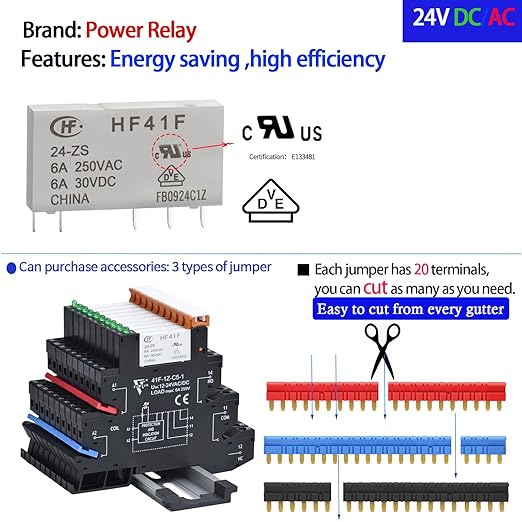

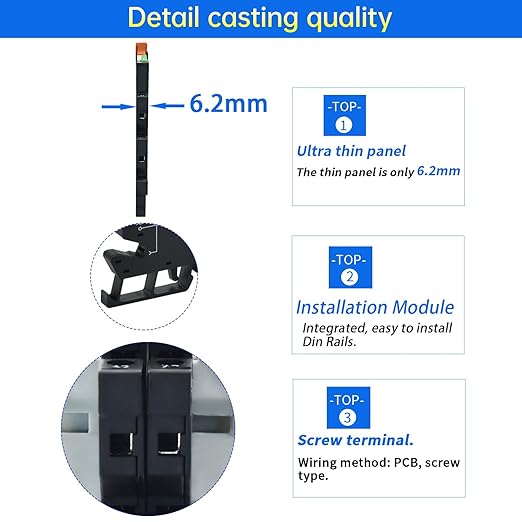

【Certifications】 Power Relay through UL and VDE certification, Socket through CE certification.Product Name: Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
【24V AC/DC】Coil Voltage:DC/AC 24V; Contact : SPDT 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

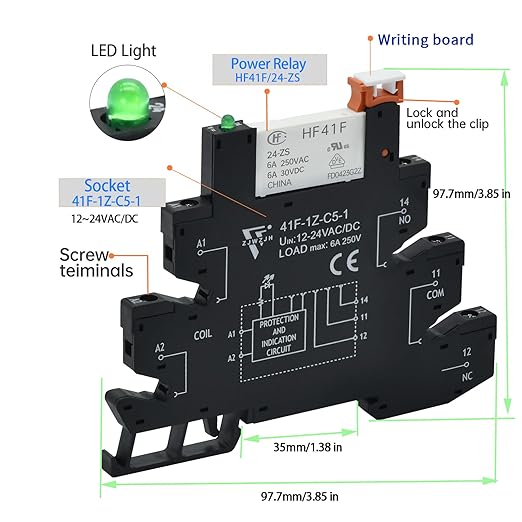

【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C5, Size : 97.7x97.7x 6.2mm / 3.85"x3.85"x 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").
【Black Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

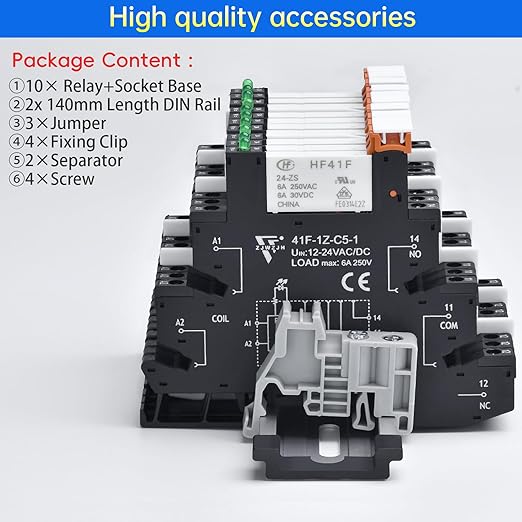

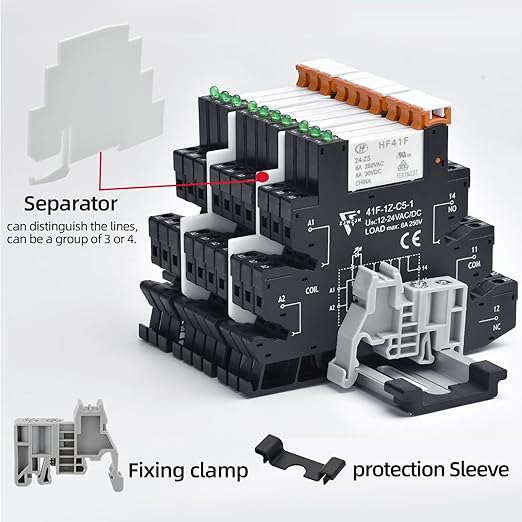

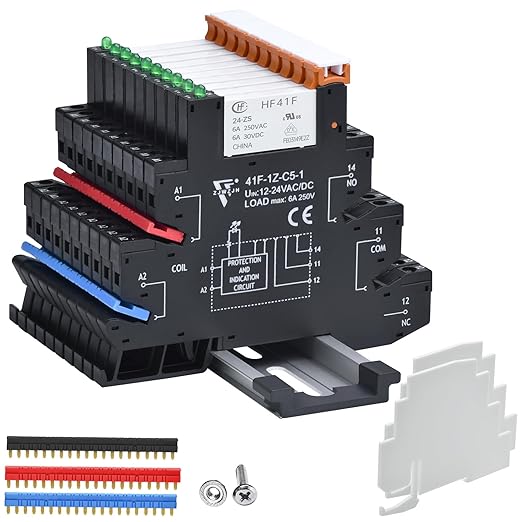

【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail;3×Jumper;4×Fixing Clip;2×Separator; 4×Screw.Ambient temperature: -40℃ ~ 70℃.

Overview

Connector Type : Screw
Contact Material : Silver Alloy
Contact Type : Normally Open
Current Rating : 6 Amps
Mounting Type : DIN Rail Mount
