About This

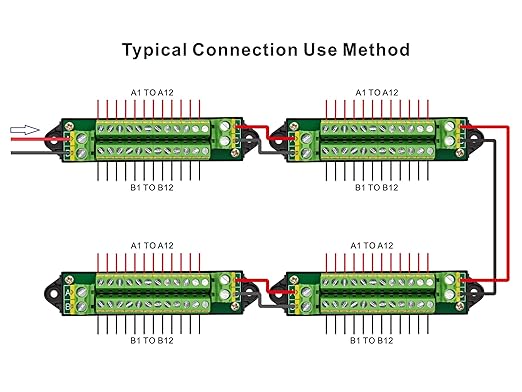

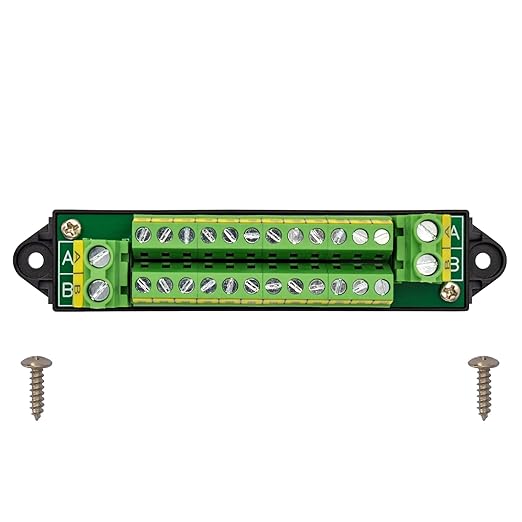

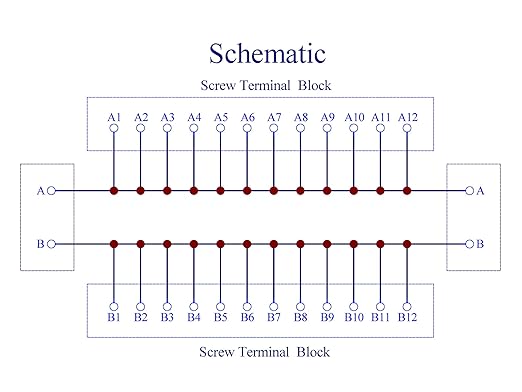

30 Amp 300V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
Rated current 30 Amp(total input or output), Maximum voltage 300V.
A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Rated current 30 Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

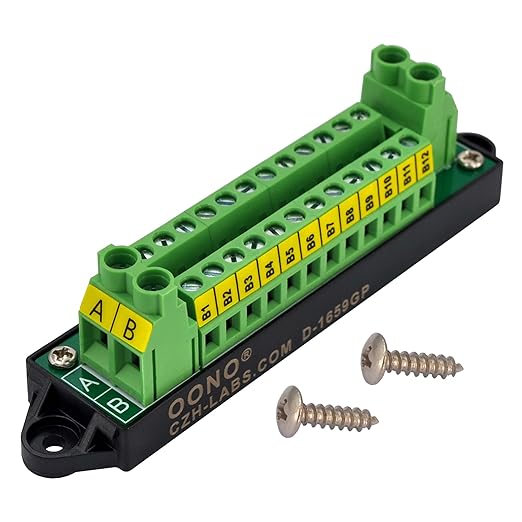

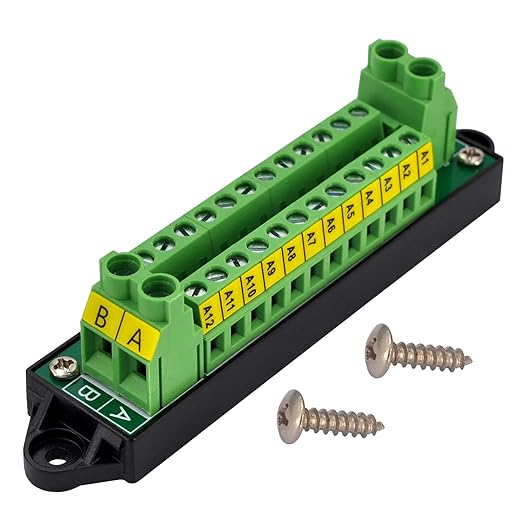

A1~A12 / B1~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16 Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Overview

Current Rating : 30 Amps
Item Pitch : 7.62 Millimeters
Gauge : 0.01
Connector Type : Screw
Number Of Contacts : 24

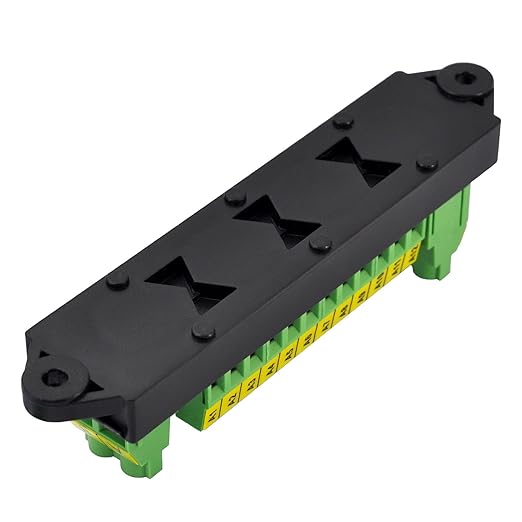

Mounting Type : Panel Mount
Material : Polycarbonate (PC), Stainless Steel
Brand : OONO
Voltage : 300 Volts
Number Of Poles : 24
