About This

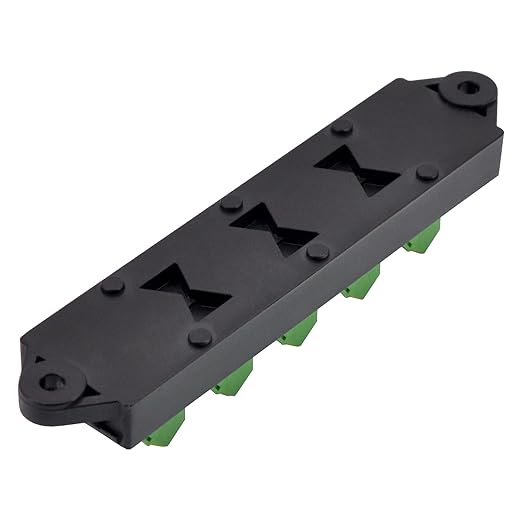

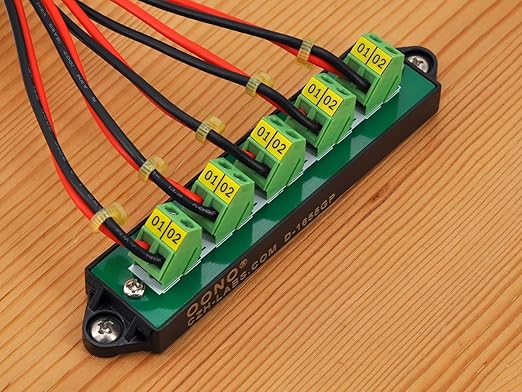

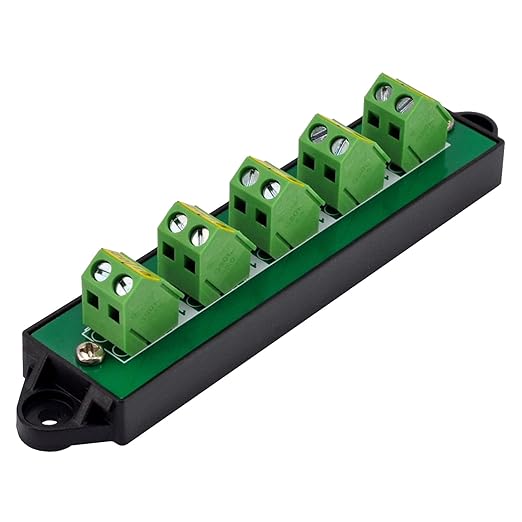

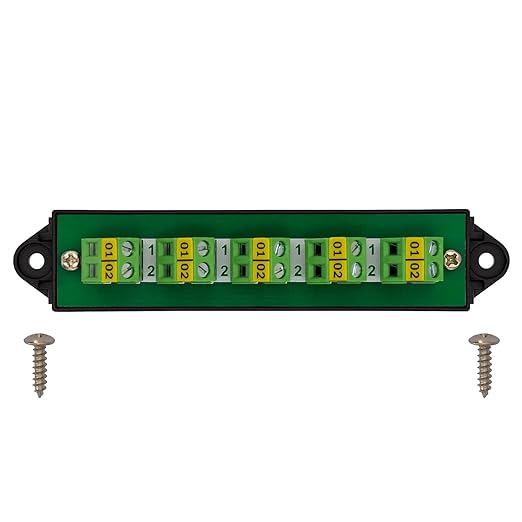

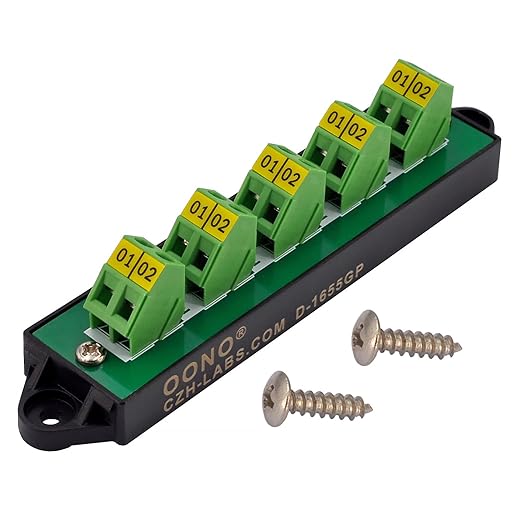

16Amp 300V 2x5 position screw terminal block distribution module.
Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.
Screw terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Overview

Current Rating : 16 Amps
Gauge : 12.0
Connector Type : Screw
Number Of Contacts : 10
Mounting Type : PCB Mount
Material : Polycarbonate (PC)
Brand : OONO
Number Of Poles : 10

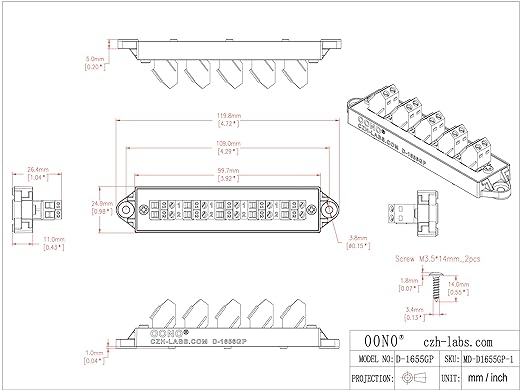

Product Dimensions : 4.72"W x 0.97"H
Specification Met : RoHS
