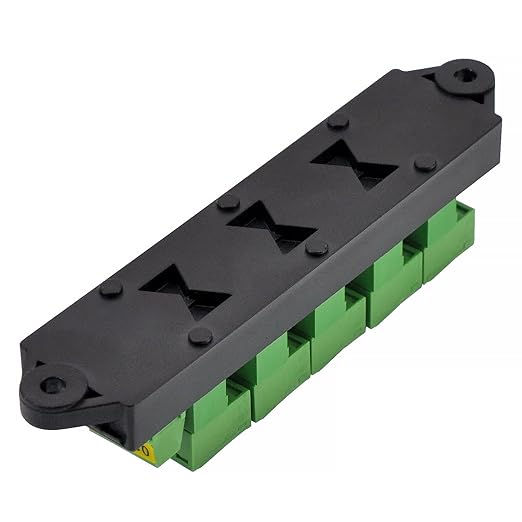

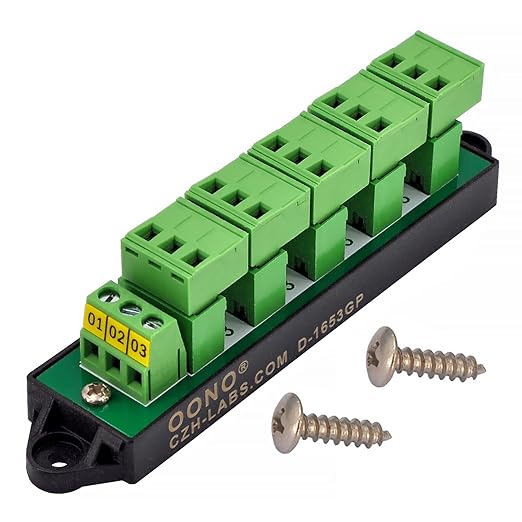

16Amp 300V 3x6 position screw pluggable terminal block distribution module.
Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.

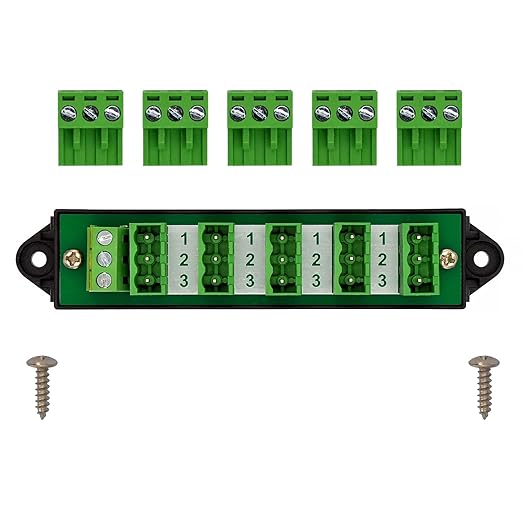

Input: 1x 3 pole screw terminal block, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

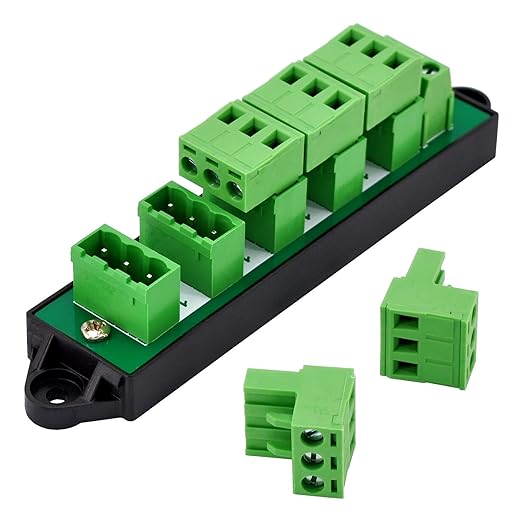

Output: 5x 3 pole pluggable screw terminal blocks, Pitch 5.08mm/0.2", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Overview

Current Rating : 16 Amps
Item Pitch : 5 Millimeters
Gauge : 0.01
Connector Type : Screw
Number Of Contacts : 18
Mounting Type : DIN Rail Mount
Material : Polycarbonate (PC)
Brand : OONO
Voltage : 300 Volts
Number Of Poles : 3
