About This

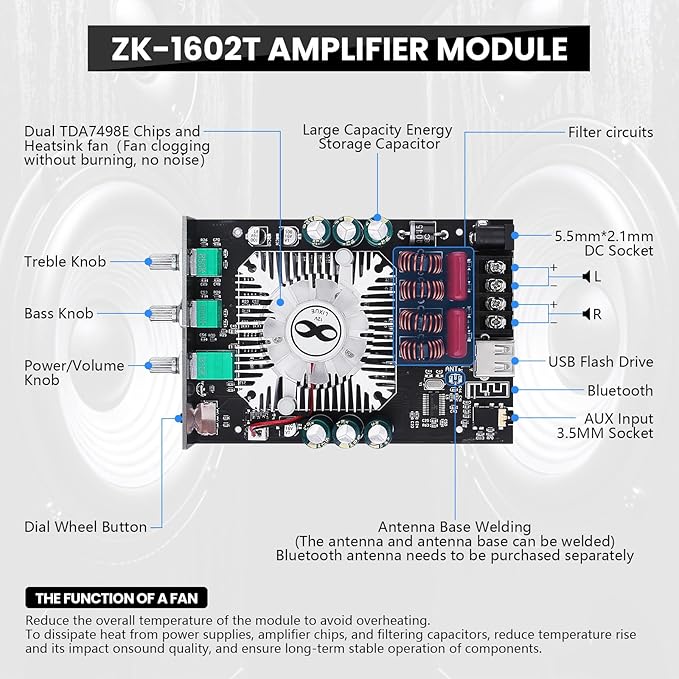

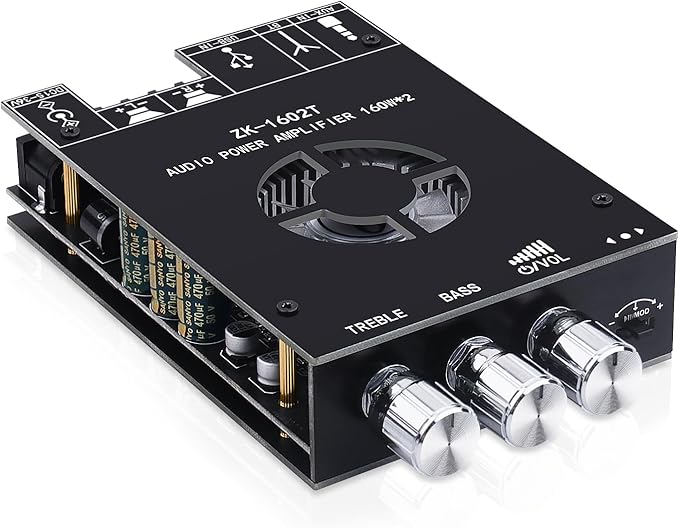

【2.0CH Stereo Audio Amplifier Board】 This ZK-1602T power amplifier is 2.0 channel 160W+160W rated power, dual TDA7498E chips drive, allows you to connect 2 passive speakers(30~200W,4~8Ω), filter circuit design, insure the output of the self-filtering, so that the sound is more pure, no waves and noise, is a true audiophile hi-fi amplifier, comes with Treble and Bass buttons, which is very friendly for audiophiles, make the bass more shocking and the treble clearer

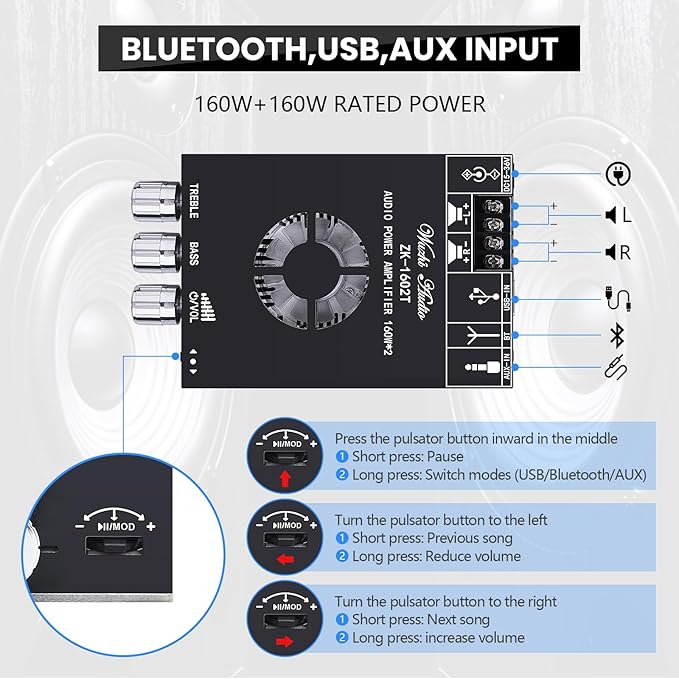

【Treble, Bass and Dial Wheel Adjustment】This ZK-1602T digital Amp board with independent treble and bass adjustment buttons,you can directly adjust the treble and bass through the module, for those with more demanding music sound effects, they can adjust the treble and bass buttons to adjust the sound effects to suit their style. The Dial Wheel button is a multi-functional button that can be used to adjust the mode, volume as well as previous, next and pause music etc.

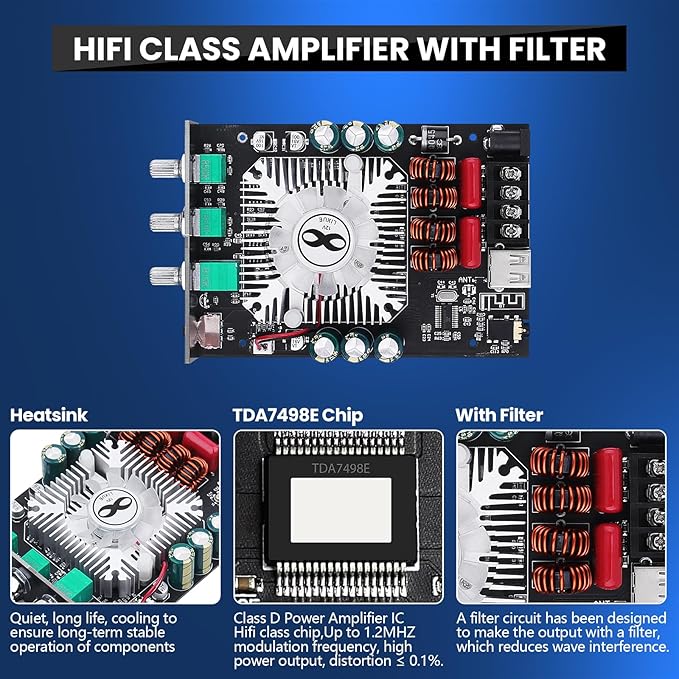

【HIFI Audio Power Amplifier】 The 1602T power amplifier board built-in two TDA7498E power amplifier chips, the TDA7498E chip is a high-performance class D power amplifier chip, can make thedevice maintain ultra-low distortion in the whole audio frequency band and show high-definition sound quality at the same time. The wiring around the chip is an window tin spraying design to increase the output power, the filter circuit can improve the sound quality and noise reduction, reduced sound distortion
【Multiple Audio Input Modes】 This Mini amplifier receiver built-in Bluetooth 5.0, USB flash disk, USB sound card and 3.5mm AUX Input. Bluetooth 5.0 mode, faster transmission speed, lossless decoding, lower distortion rate, connection distance to audio equipment is 10m/39ft. Note: When using AUX mode, please confirm that the Bluetooth connection of this module has been disconnected

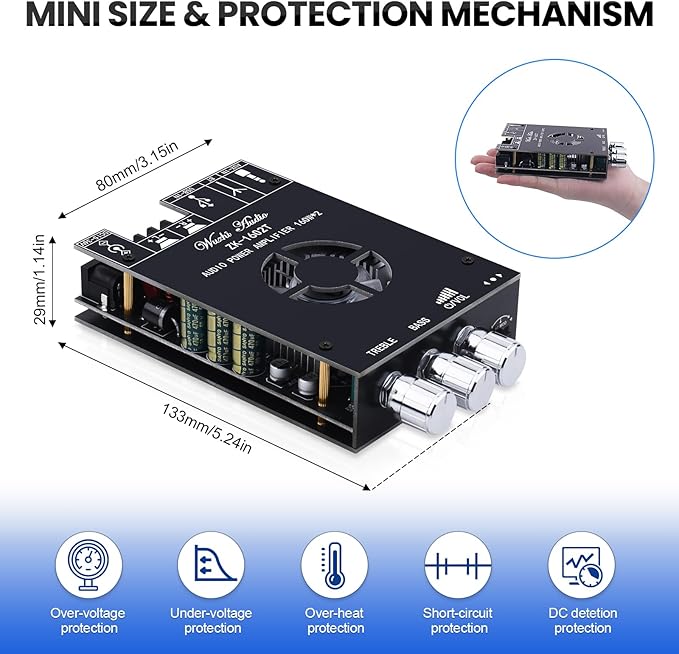

【With Protective Function】 This Bluetooth Amp module is designed with multiple protection mechanisms, include over-voltage protection, under-voltage protection, over-heat protection, short-circuit protection, with case to protective it. Besides, There is a Long-life Ultra Silent Fan(locked rotor, no burning,no noise) above audio chips, for heat dissipation and protection of Bluetooth amplifier board

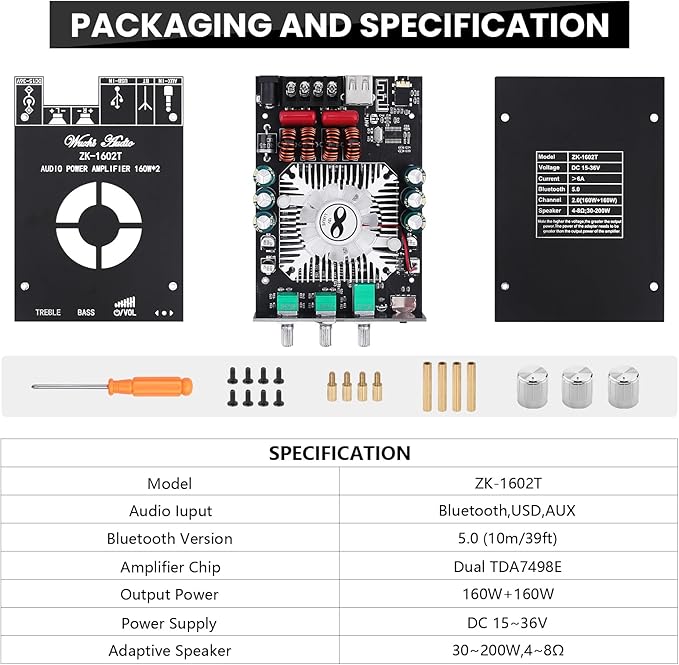

Overview

Voltage : 15 Volts (DC)
Manufacturer : DideaECO
Maximum Supply Voltage : 36 Volts (DC)
Minimum Supply Voltage : 15 Volts (DC)
Mounting Type : Surface Mount
