20Pcs Electromechanical Relay 6Amp Miniature Power Relay 110V-120V AC 1NO 1NC SPDT with LED Indicator, Socket Base, DIN Rail Slotted
$263.98
Skip to product information
20Pcs Electromechanical Relay 6Amp Miniature Power Relay 110V-120V AC 1NO 1NC SPDT with LED Indicator, Socket Base, DIN Rail Slotted
$263.98
Shipping calculated at checkout.
About This

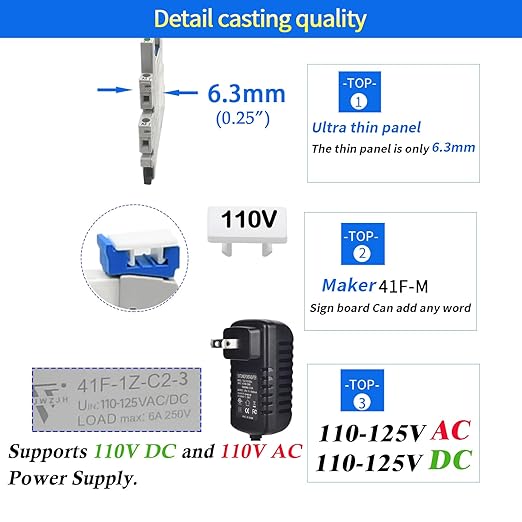

- 【UL Certifications】 The thickness is only 0.24inch (6.2mm). Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay.
- Contact : SPDT (1NO 1NC); Number of Terminals : 5 Pin; Coil Voltage: 110V AC/DC; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

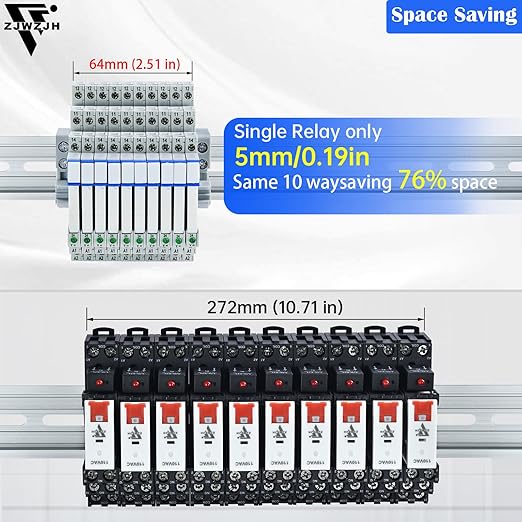

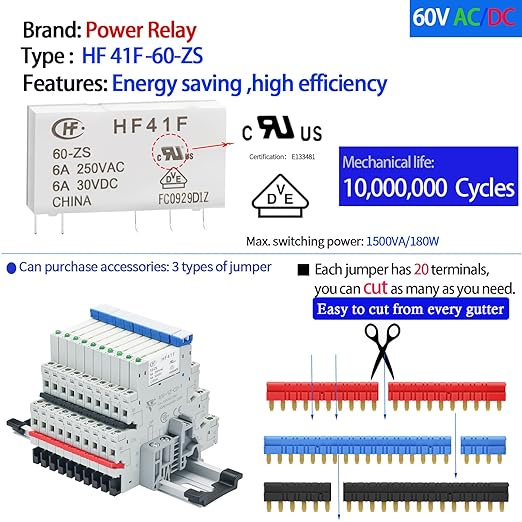

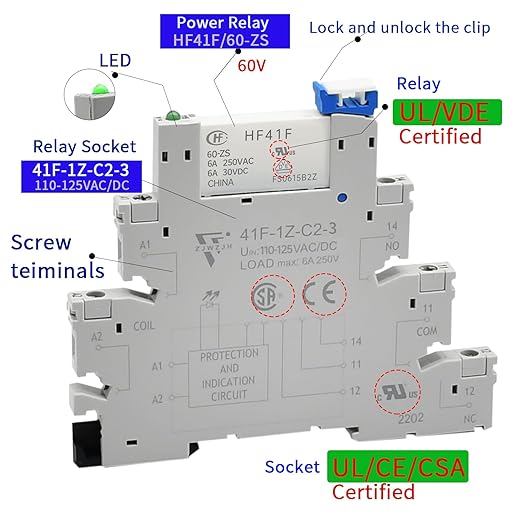

- 110V Relay Model:HF41F/60-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
- Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :140mm (5.51").

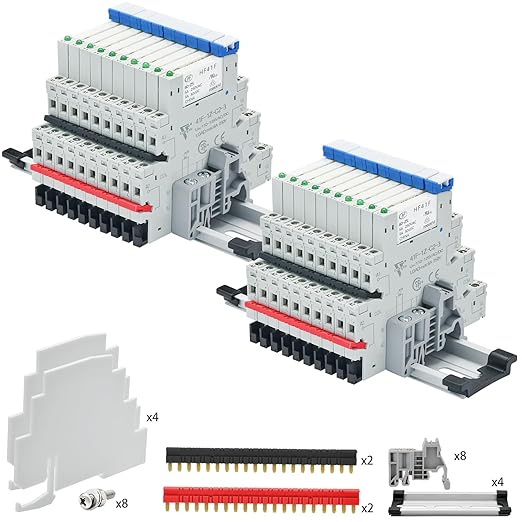

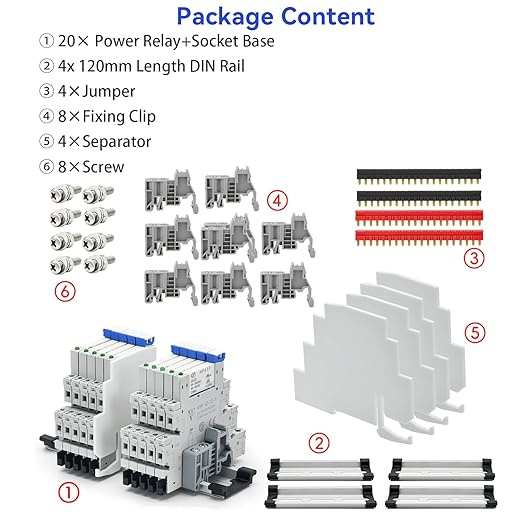

- (Package) 20 Power Relay; 20 Relay Socket Base; 4x 140mm Length DIN Rail; 6x Jumper;8x Fixing Clip;4x Separator; 8x Screw.
Overview
- Connector Type : Screw
- Contact Material : Silver Alloy
- Contact Type : Normally Open
- Current Rating : 6 Amps
- Mounting Type : DIN Rail Mount
