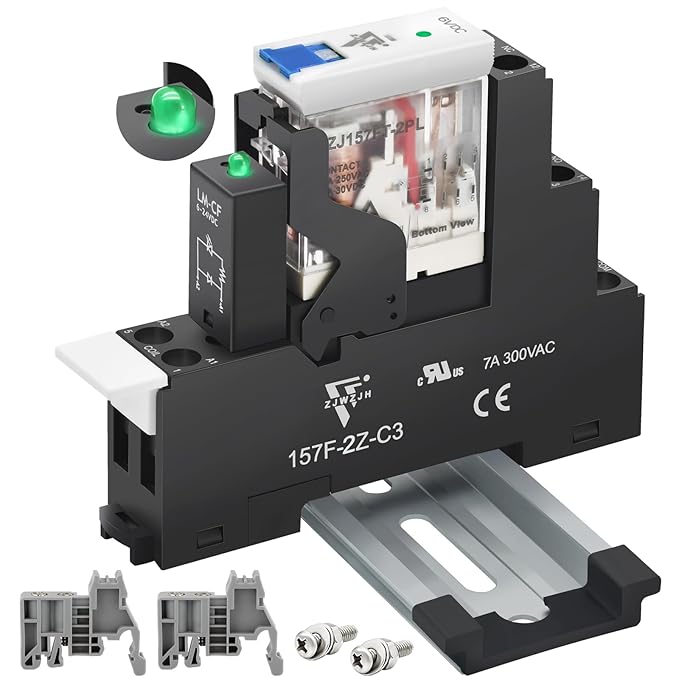

6 Volt Electromagnetic Power Relay with Test Button Coil 8Amp 8 Pins DPDT with Indicator Light and Socket Base UL CE TUV Certification
$16.48
Shipping calculated at checkout.
About This

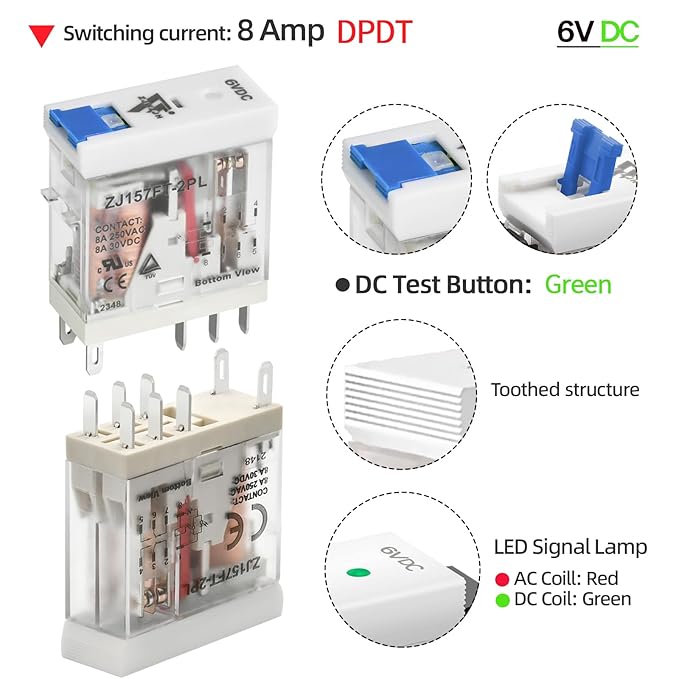

- Our Miniature PCB Power Relay through UL TUV and CE certification. Relay's point dynamic test button can be used to manually change the contact state.

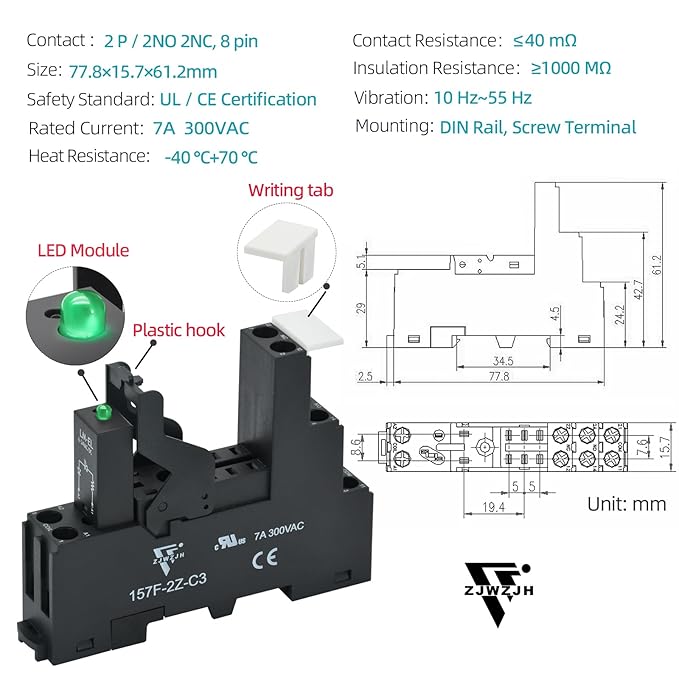

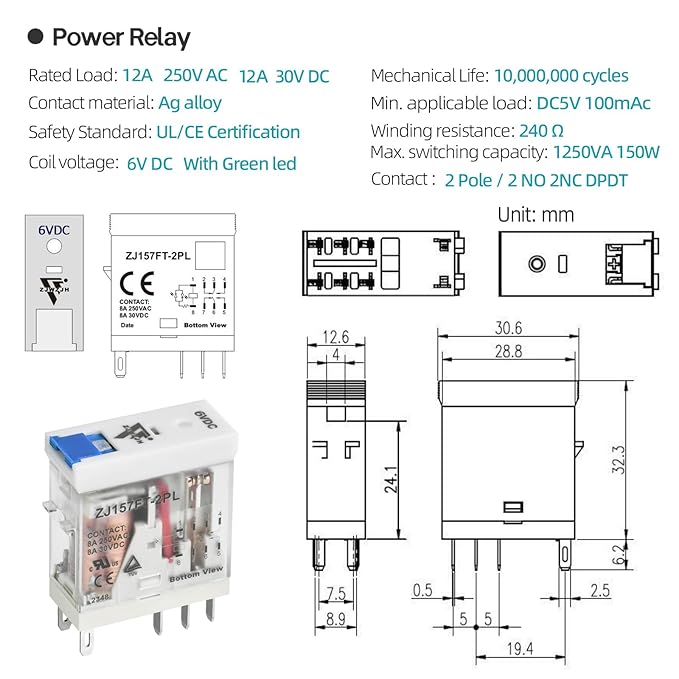

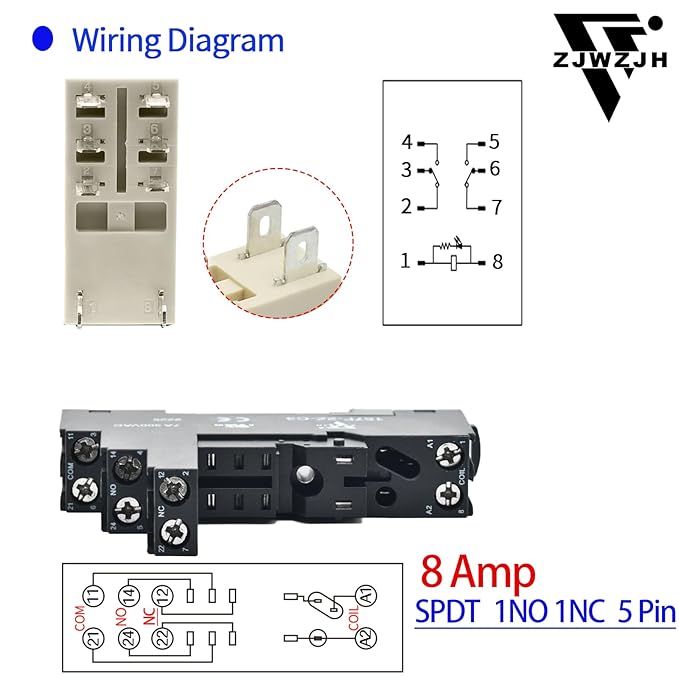

- Rated current:8 Amps. Contact:2-way 2NO 2NC DPDT 8 Pin 2 Poles. Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.
- Relay voltage: 6VDC, LED light module: 6-24V DC.
- The LED indicator on the relay is green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

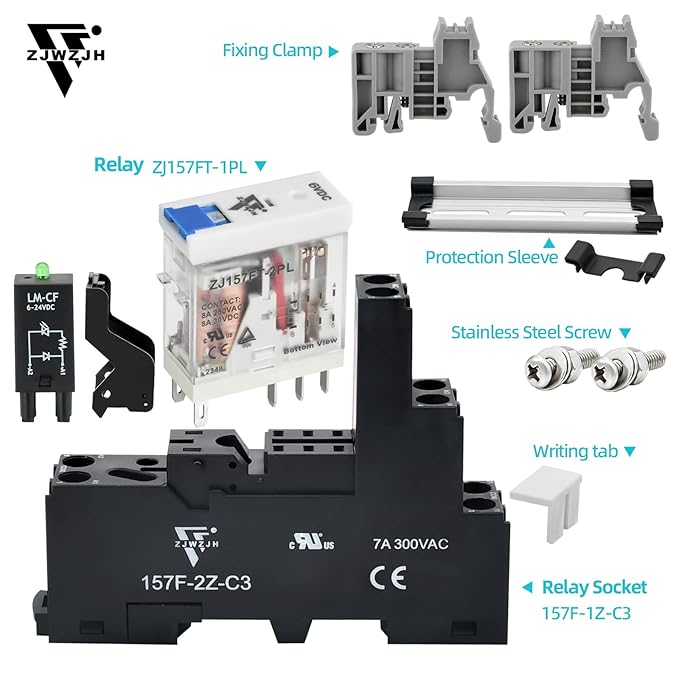

- Package Content : 1 x Porwe Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
Overview
- Connector Type : Screw
- Contact Material : Silver
- Contact Type : Dpdt
- Current Rating : 8 Amps
- Mounting Type : DIN Rail Mount
